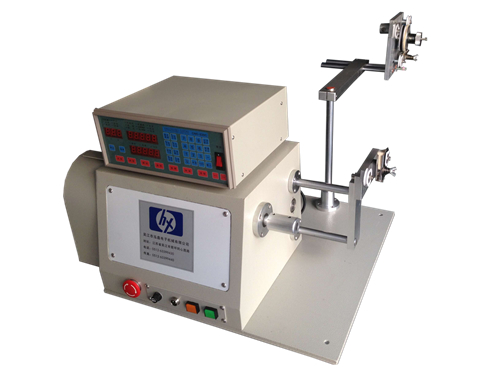

| 器型號Machine Type | HX-611T |
| 適用線徑Wire Size(mm) | 0.05-1.2 选配 |
| 繞線幅寬Rotating diameter(mm) | 260 |
| 排線幅寬Wire arranging itinerary(mm) | 210 |
| 控制方式Control | CNC數位控制,變頻驅動 |
| 最高轉速MaxSpeed | 3000 rpm |
| 排線間距Wire Spacing(mm) | 0.001-99.999 |
| 主軸馬達Main Motor | AC,0.75KW |
| 排線馬達Spreading Motor | DC 2A/Stepping Motor |
| 凈重Net Weight(kg) | 95 |
| 尺寸Dimensions L×W×H(mm) | 750*600*650 |
| 电压Voltage | 单相220V 50HZ |
| 本公司可根據客戶需求，設計各種型號規格的繞線機產品，以配合各種線圈的繞制需求。 We can customize the winding machine according to your special requirement. | |
